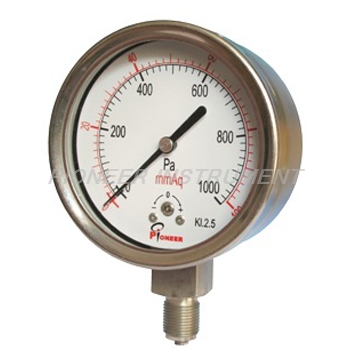

pressure gauge with capsule elements
Product Model:PMB40-AFM-B102P-BG38
Product Brand:PIONEER
Product Type:Mechanical pressure gauge
Product Series:Pressure gauges with capsule elements series
Meter Diameter:4.0Inch(100mm)
Pressure range: 0~1000Pa/0~100mmAq
Scale unit: Kpa(black)&mmAq(red)
Structural styles:Necking style outer case cover ring tighten structure
Case Material: SUS304 stainless steel
Transmission components Material: SUS304 stainless steel
Elastic element material: SUS316L stainless steel (capsule)
Connector Material: SUS304 stainless steel
Meter Window Material: high transparent PC
Dial Material: Aluminum (white background)
Pointer Material: Aluminum (Black electrophoresis)
Mounting Type:Radial mounting
Form of pressure: Pressure(relative pressure)
Connection Screw Thread: G3/8 (3/8PF)
Accuracy class: 2.5% f.s.
