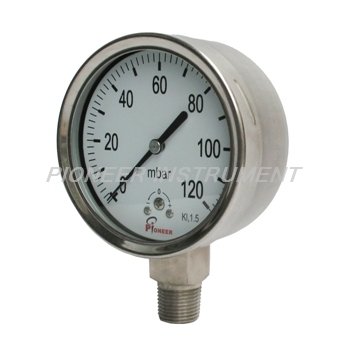

2.5Inch stainless steel millibar gauge
Product Model:PMB25-AFM-B121D-BP14
Product Brand:PIONEER
Product Type:Mechanical pressure gauges
Product Series:Pressure gauges with capsule elements series
Meter Diameter:2.5Inch(63mm)
Pressure range:0~120mbar
Scale unit:mbar(black)
Structural styles:Cover-ring wild card necking tighten the structure
Case Material:SUS304 Stainless steel
Cover ring material:SUS304 Stainless steel
Transmission components Material:SUS304 Stainless steel
Elastic element material: SUS316Stainless steel (capsule)
Connector Material: SUS316 Stainless steel
Meter Window Material: Safety glass window
Dial Material: Aluminum (white background)Front adjust zeroing
Pointer Material: Aluminum
Mounting Type:Radial mounting
Form of pressure:pressure (relative pressure)
Connection Screw Thread:PT1/4(ZG1/4)
Accuracy class: 2.5%f.s.
