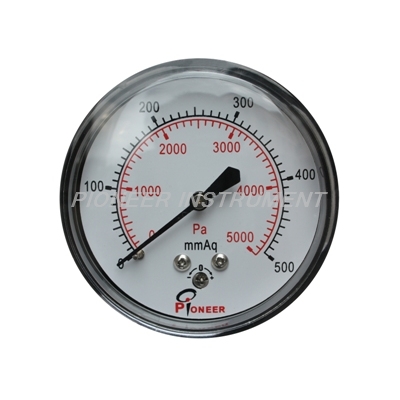

2.6 inch Axial stainless steel case pressure gauges with capsule elements
Product Model:PMB26-BEC-B502P-BP14
Product Brand:PIONEER
Product Type:Mechanical pressure gauges
Product Series:Pressure gauges with capsule elements series
Meter Diameter:2.6Inch(66mm)
Pressure range:0~5000Pa/0~500mmAq
Scale unit:Pa(black)&mmAq(red)
Structural styles:Arc surface window spin embedded structure
Case Material:Iron casing black spray painting (Matte )
Cover ring material:Without
Transmission components Material: copper alloy
Elastic element material: copper alloy (capsule)
Connector Material: copper alloy (Plating nickel)
Meter Window Material: Arc surface Acrylic window
Dial Material: Aluminum (white background)Front adjust zeroing
Pointer Material: Aluminum
Mounting Type:Axial mounting
Form of pressure:Pressure(relative pressure)
Connection Screw Thread:PT1/4(ZG1/4)
Accuracy class: 2.5% f.s.
