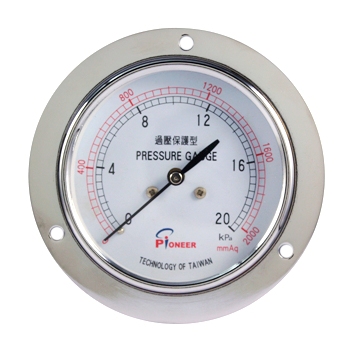

pressure gauges with capsule elements
Product Model:PMB30-DEE-B200K-BG38
Product Brand:PIONEER
Product Type:Mechanical pressure gauges
Product Series:Pressure gauges with capsule elements series
Meter Diameter:4.0Inch(100mm)
Pressure range:0~20kPa/0~2000mmAq
Scale unit: kPa(black)&mmAq(red)
Structural styles:One body flange cover ring and bushing screw locking type
Case Material: SUS304 stainless steel
Transmission components Material: Copper alloy
Elastic element material: copper alloy (capsule)
Connector Material: Copper Alloy
Meter Window Material: high transparent PC
Dial Material: Aluminum (white background)
Pointer Material: Aluminum (Black electrophoresis)
Mounting Type:Axial forward flange (Panel Mount)
Form of pressure: gauge (relative pressure)
Connection Screw Thread: G3/8 (3/8PF)
Accuracy class
