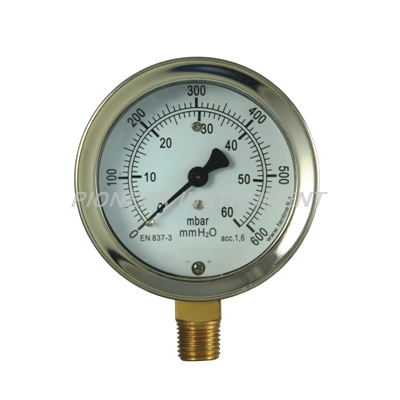

2.5 Inch Radial stainless steel case pressure gauge with capsule elements
Product Model:PMB25-AEM-B600D-BP14
Product Brand:PIONEER
Product Type:Mechanical pressure gauges
Product Series:Pressure gauges with capsule elements series
Meter Diameter:2.5Inch(63mm)
Pressure range:0~60mbar/0~600mmH2O
Scale unit:kPa(black)&mmH2O(black)
Structural styles:Case and Cover-ring wild card tighten the structure
Case Material:SUS304 Stainless steel
Cover ring material:SUS304 Stainless steel
Transmission components Material:copper alloy
Elastic element material: Beryllium-copper alloy (capsule)
Connector Material: copper alloy
Meter Window Material: Polycarbonate(PC)
Dial Material: Aluminum (white background)Front adjust zeroing
Pointer Material: Aluminum
Mounting Type:Radial mounting
Form of pressure:pressure (relative pressure)
Connection Screw Thread:PT1/4(ZG1/4)
Accuracy class: 2.5%f.s.
