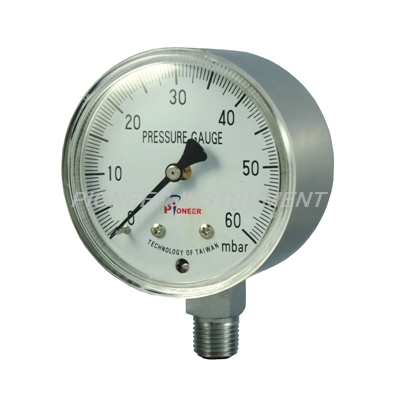

2.6 inch stainless steel case millibar pressure
Product Model:PMB26-AEC-B600D-BP14
Product Brand:PIONEER
Product Type:Mechanical pressure gauges
Product Series:Pressure gauges with capsule elements series
Meter Diameter:2.6Inch(66mm)
Pressure range:0~60mbar
Scale unit:mbar(black)
Structural styles:Arc surface Polycarbonate window embedded structure
Case Material:SUS304 Stainless steel
Cover ring material:Without
Transmission components Material: copper alloy
Elastic element material: copper alloy (capsule)
Connector Material: copper alloy (Plating nickel)
Meter Window Material: Arc surface Polycarbonate window
Dial Material: Aluminum (white background)Front adjust zeroing
Pointer Material: Aluminum
Mounting Type:Radial mounting
Form of pressure:Pressure(relative pressure)
Connection Screw Thread:PT1/4(ZG1/4)
Accuracy class: 2.5% f.s.
