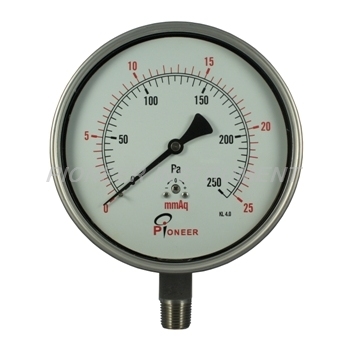

pressure gauge with capsule elements
Product Model:PMB60-AFM-B251P-BP12
Product Type:Mechanical pressure gauge
Product Series:Pressure gauges with capsule elements series
Meter Diameter:6.0Inch(150mm)
Pressure range::0~250Pa/0~25mmAq
Scale unit: :Pa(black)&mmAq(red)
Structural styles: Tighten the outer casing structure necking card
Case Material: SUS304 stainless steel
Transmission components Material: SUS304 stainless steel (movement)
Elastic element material: SUS316 stainless steel (capsule)
Connector Material: SUS316 stainless steel
Meter Window Material: high transparent PC
Dial Material: Aluminum (white background)
Pointer Material: Aluminum (Black electrophoresis)
Mounting Type:Axial forward flange (Panel Mount)
Form of pressure: pressure(relative pressure)
Connection Screw Thread: 1/2PT(ZG1/2)
Accuracy class: 2.5% f.s.
